Bridge Configuration & Multi-Domain Management (LDAPS, Service Account, Sync Schedule)

Overview

An Identity Bridge runs in your network and collects identity data from Active Directory. You manage its domains, service account credentials, schedule and trusted certificates on the bridge's page in GraphnAI.

• Several domains per bridge: One bridge can sync several domains or forests. Each domain has its own service account, domain controllers and TLS setting.
• No credentials on the bridge's disk: GraphnAI encrypts each password when you save it. The bridge holds passwords in memory only and gets them again when it reconnects.
• Changes apply without a restart: A saved change reaches a connected bridge at once. An offline bridge gets it when it reconnects.
• Test before you save: Test connection checks the account and the domain controllers through the bridge.

Prerequisites

• Role: Admin to change settings. Operators can view a bridge's page, and start and stop syncs.
• A bridge: Create one with Deploy bridge, then run it in your network. See Identity Bridge.
• Service account: One account for each domain. A standard domain user can read what the bridge needs. See Service Account Requirements.

Open a Bridge's Page

1. Select Admin > Bridges in the sidebar.
2. The first bridge's page opens. To switch, open the bridge selector at the top left and choose another bridge.

The sidebar shows Bridges to Admins only. Operators reach a bridge's page from links on the dashboard. With no bridge yet, the page shows "No bridges yet" and, for Admins, Deploy bridge.

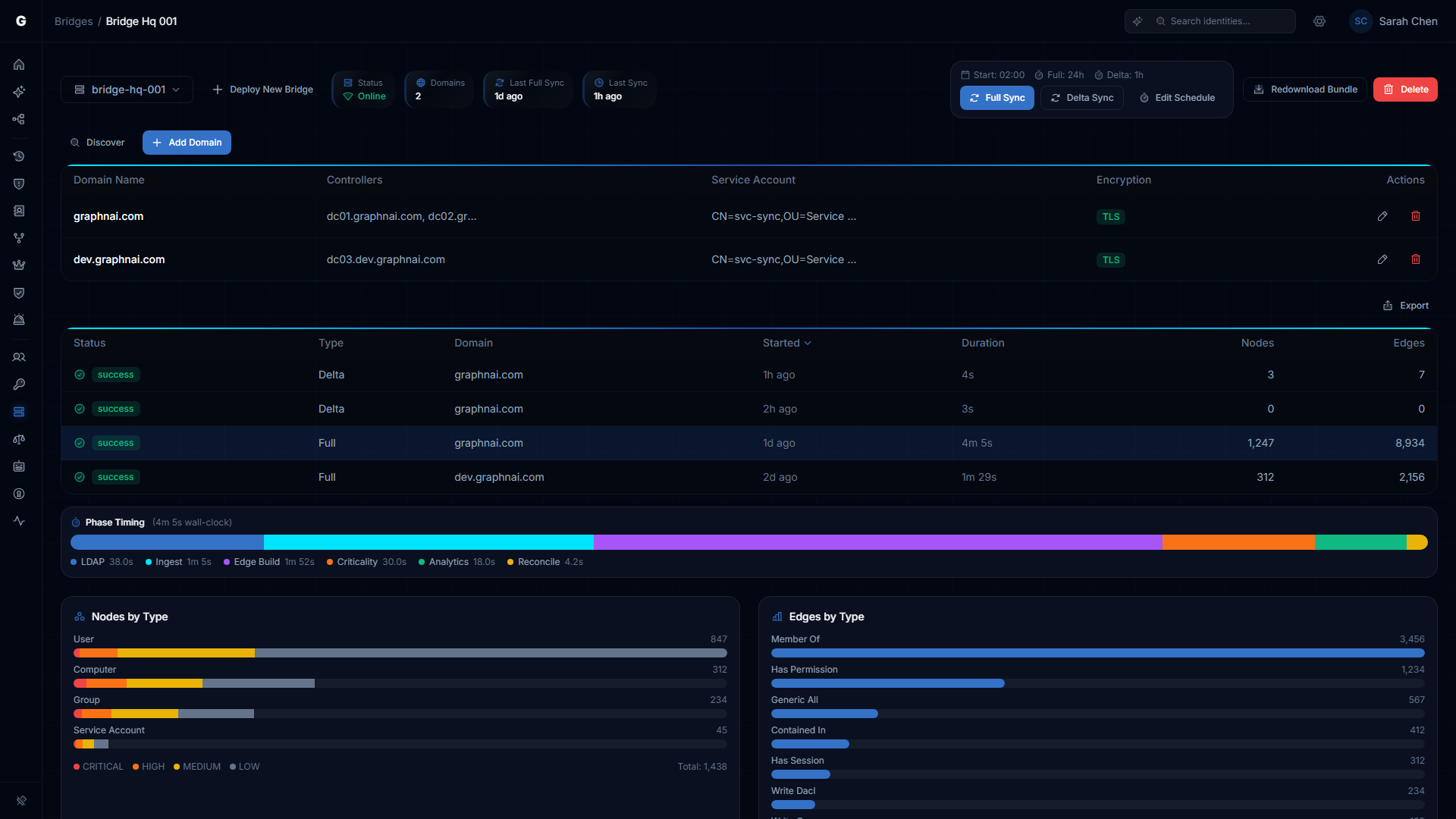

The top of the page holds:

The gear icon at the top right opens Sync attributes. See Attribute Sync Configuration.

Below the header are any group membership warnings, the domain table, Trusted certificates, Sync history, and the details of the selected sync.

Create a Bridge

This takes the Admin role.

1. Select Deploy bridge.
2. Enter a Bridge ID, such as bridge-nyc-01. Use letters, numbers, hyphens and underscores.
3. Select Create and download.

The setup bundle downloads as bridge-<id>-setup.zip, and the new bridge's page opens. Its status reads Offline until the bridge connects. To install and start it, see Identity Bridge.

Download setup bundle gives you a new bundle for the same bridge ID, with a new private key and mTLS client certificate. Use it to redeploy the bridge or to replace a lost key.

Configure Domains

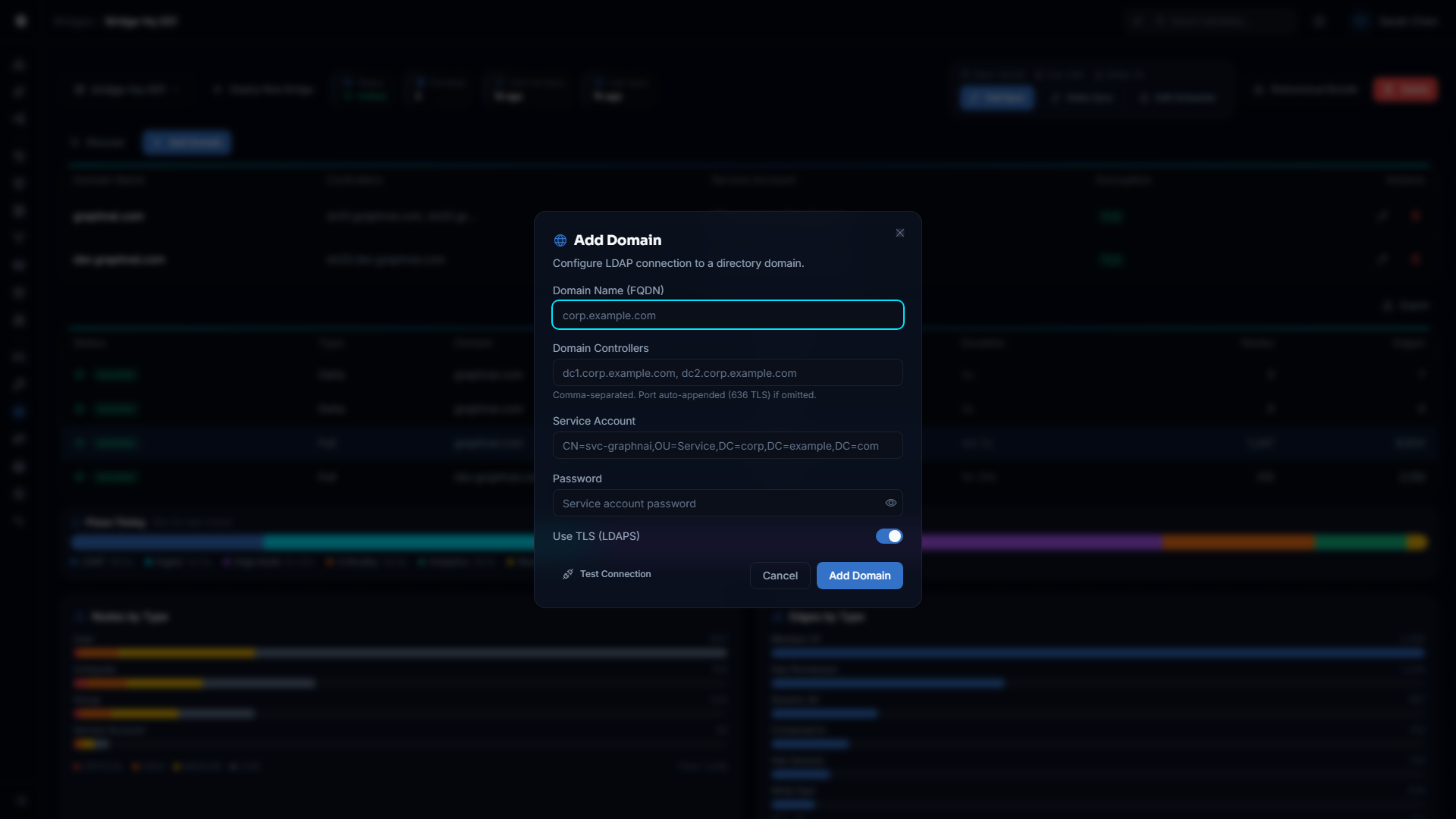

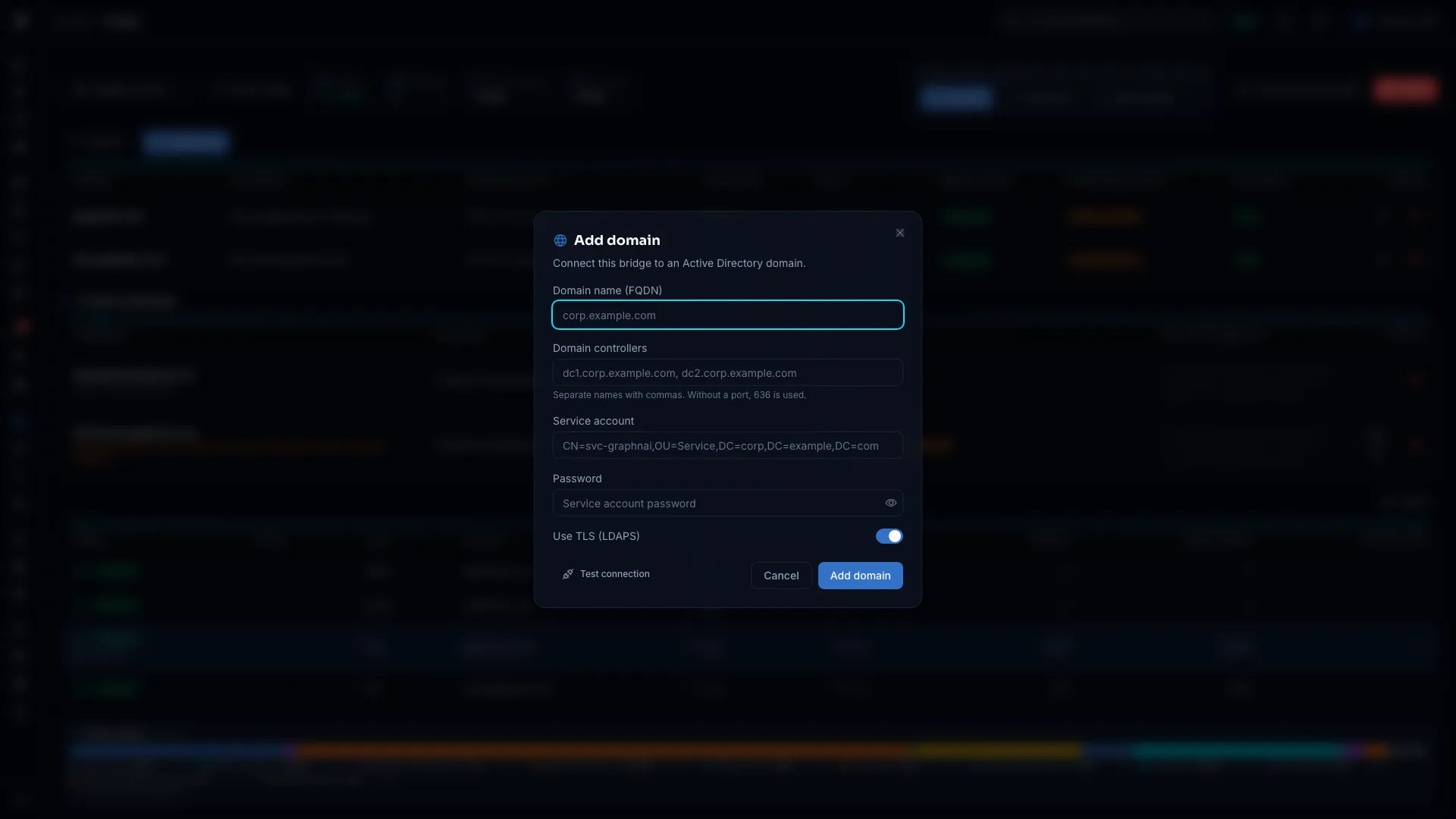

Add a Domain

1. On the bridge's page, select Add domain above the domain table.
2. Fill in the form:

3. Check the controller order under the field. Syncs try the controllers in order and use the first one that responds. The first is marked Preferred. Use the arrows to move a controller up or down.
4. Select Test connection. See Test a Connection.
5. Select Add domain.

GraphnAI saves the domain and sends it to the bridge. If the save fails, the form stays open with what you typed.

Your plan sets how many directory sources you can add. Past that number, the save is refused with "The current plan covers N directory sources. Remove one or upgrade to add another." See License Enforcement.

Ports: LDAPS uses port 636 and plain LDAP uses port 389. Use LDAPS in production. If a controller listens on another port, add it after a colon, such as dc01.corp.example.com:3269 for the Global Catalog over LDAPS.

Change-history checks: For the proofs on the edge panel (see Change-History Checks), the bridge must reach every writable domain controller of the domain, over verified TLS when Use TLS is on: LDAPS, or StartTLS with a certificate the bridge trusts. A domain controller it can't reach must replicate into a reachable one within 30 minutes. Otherwise proofs in that domain wait.

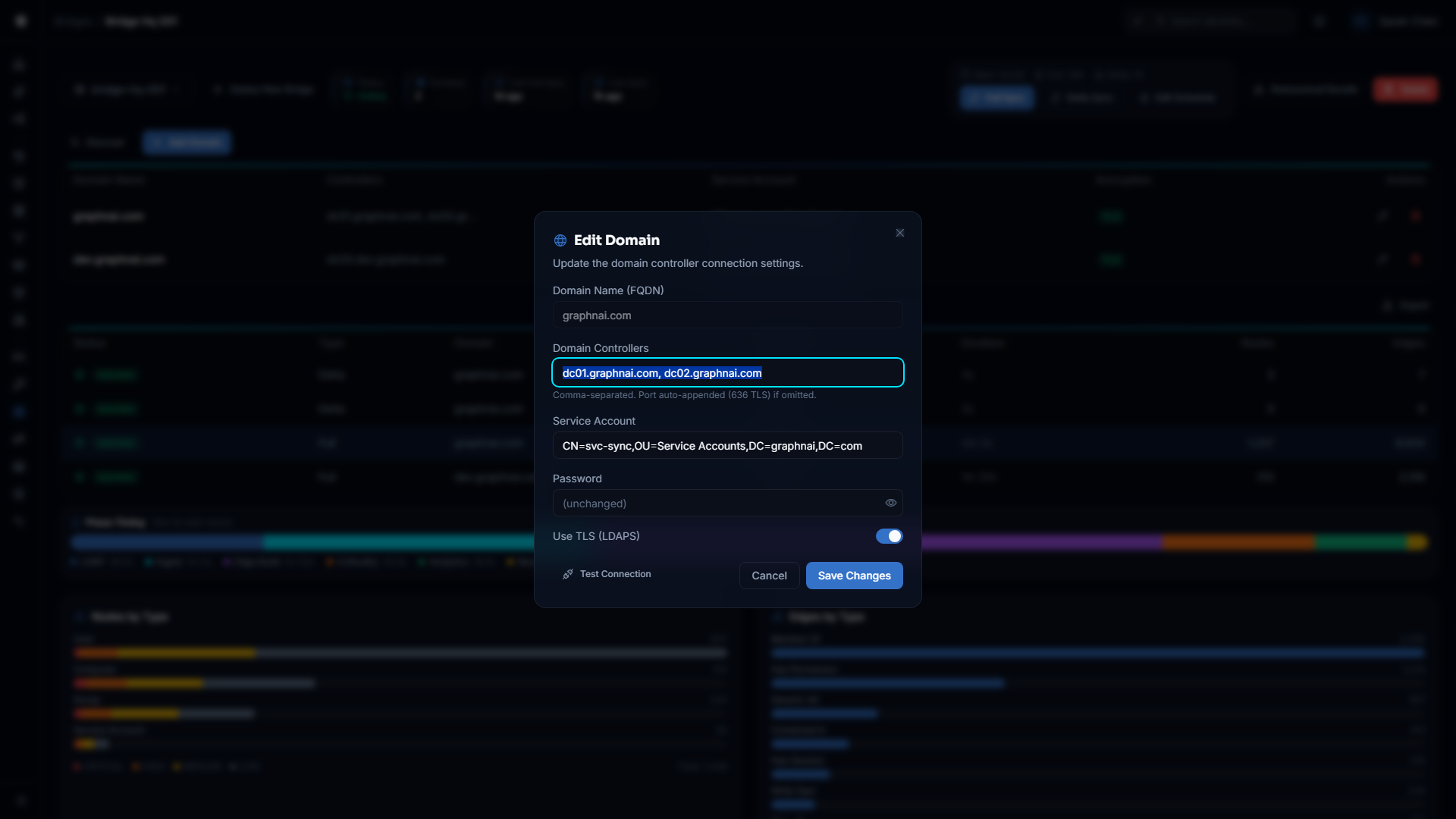

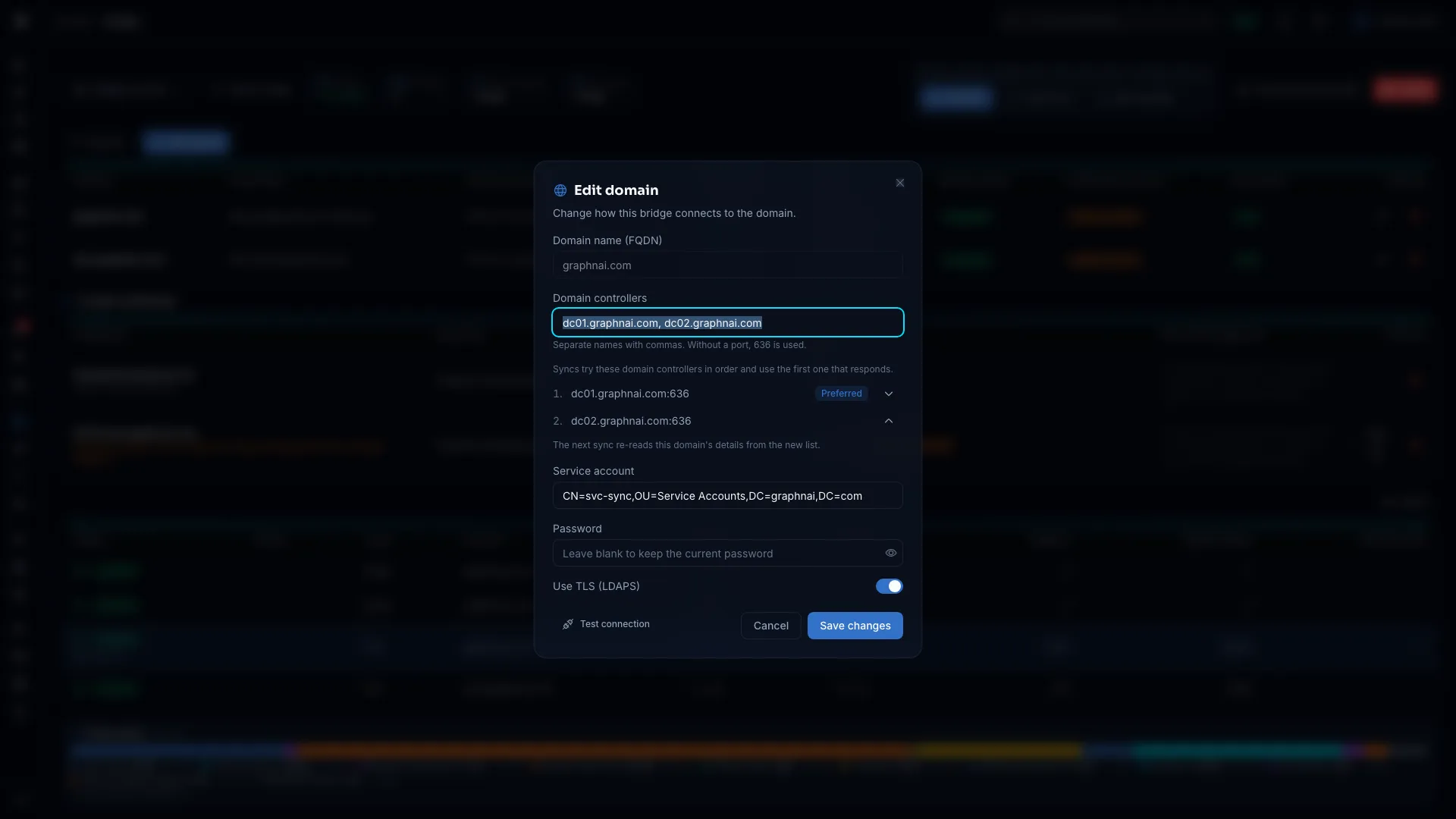

Edit a Domain

1. Select the pencil icon (Edit domain) on the domain's row.
2. Change the fields you need.
   • Leave Password blank to keep the saved password.
   • You can't change the domain name. To rename a domain, remove it and add it again.
   • After you change the controller list, the next sync re-reads the domain's details from the new list.
3. Select Test connection.
4. Select Save changes.

Remove a Domain

1. Select the trash icon (Remove domain) on the domain's row.
2. Select Remove to confirm.

The bridge stops syncing that domain. Data already synced from it stays in the graph.

Several Domains on One Bridge

Add each domain with Add domain. Each domain has its own service account, controllers and TLS setting. The bridge syncs its domains one after another, and each domain gets its own rows in Sync history.

When the bridge receives new settings, it registers every domain that has a name and at least one controller. A domain whose preferred controller doesn't answer stays configured, and the next sync tries each listed controller in order.

The Domain Table

The Audit coverage column shows:

Each domain has one checking bridge. The results appear in Audit coverage under Platform Health. See Risk Posture Dashboard.

The Connection column shows:

A controller name with an amber dot carries one or more of these badges:

Test a Connection

Test connection sends the form's values to the bridge. The bridge connects to the controllers and makes an LDAP bind with the service account. Nothing is saved.

1. Fill in the domain name, controllers, service account and password. When you edit a domain, a blank password tests the saved one.
2. Select Test connection.
3. Wait for the result. The test stops waiting after 60 seconds.
4. If it shows "Connection successful", select Add domain or Save changes.
5. If it fails, fix what the message names and test again.

Credential Security

The bridge host never stores service account passwords on disk. GraphnAI keeps them encrypted.

In practice:

• A compromised bridge host holds no credential files to steal.
• A database backup alone can't decrypt the passwords. The key stays outside the database.
• To rotate a service account password, edit the domain, enter the new password and save. Nothing changes on the bridge host.

Sync Scheduling

The bridge runs two kinds of sync:

The first scheduled sync runs at the First sync at time, in the bridge host's time zone. After that, a sync runs at each delta interval. When the full sync interval has passed since the last full sync, that sync runs as a full sync. A domain's first sync is always a full sync.

Each time the bridge receives its settings, it waits for the next First sync at time before its next scheduled sync. That happens when you save the bridge's domains or schedule, and when the bridge reconnects. To sync sooner, select Delta sync or Full sync.

Change the Schedule

This takes the Admin role.

1. Select Edit schedule.
2. Set the fields:

3. Select Save schedule.

Enter an interval as a number and a unit (s, m, h or d), such as 30m or 24h. Enter the full sync interval in hours. The bridge reads a full sync interval in days, such as 7d, as 24 hours, so enter 168h instead.

The line above the sync buttons shows the schedule in use, such as "Starts 02:00, bridge time", "Full every 24h" and "Delta every 1h".

Recommendation: Full syncs put the most load on your domain controllers. Set First sync at to a quiet hour, so full syncs land near that time. Delta syncs are light and can run often.

Start a Sync Now

Operators and Admins can start a sync.

1. Select Full sync or Delta sync.

A full sync reads every object in every domain on the bridge, so it takes longer. A new row appears in Sync history and updates as the sync runs.

The bridge must be online, and only one sync runs on a bridge at a time. The buttons are disabled while a sync runs. They're also locked while the license is read-only.

Stop a Sync

1. Select Stop. It shows while a sync runs.

The row changes to Stopped. It can show Running for up to a minute while the bridge stops. The next scheduled sync runs as usual.

Trust the Certificate Authority for LDAPS

With LDAPS, the bridge must trust the certificate authority that issued your domain controllers' certificates. Controllers usually get them from an internal Active Directory Certificate Services (AD CS) authority, which the bridge doesn't trust until you add it here.

Trust the certificate authority itself. Windows renews a controller's certificate every year, a few weeks before it expires. A trusted certificate authority keeps working through every renewal. A trusted controller certificate stops working at the next one.

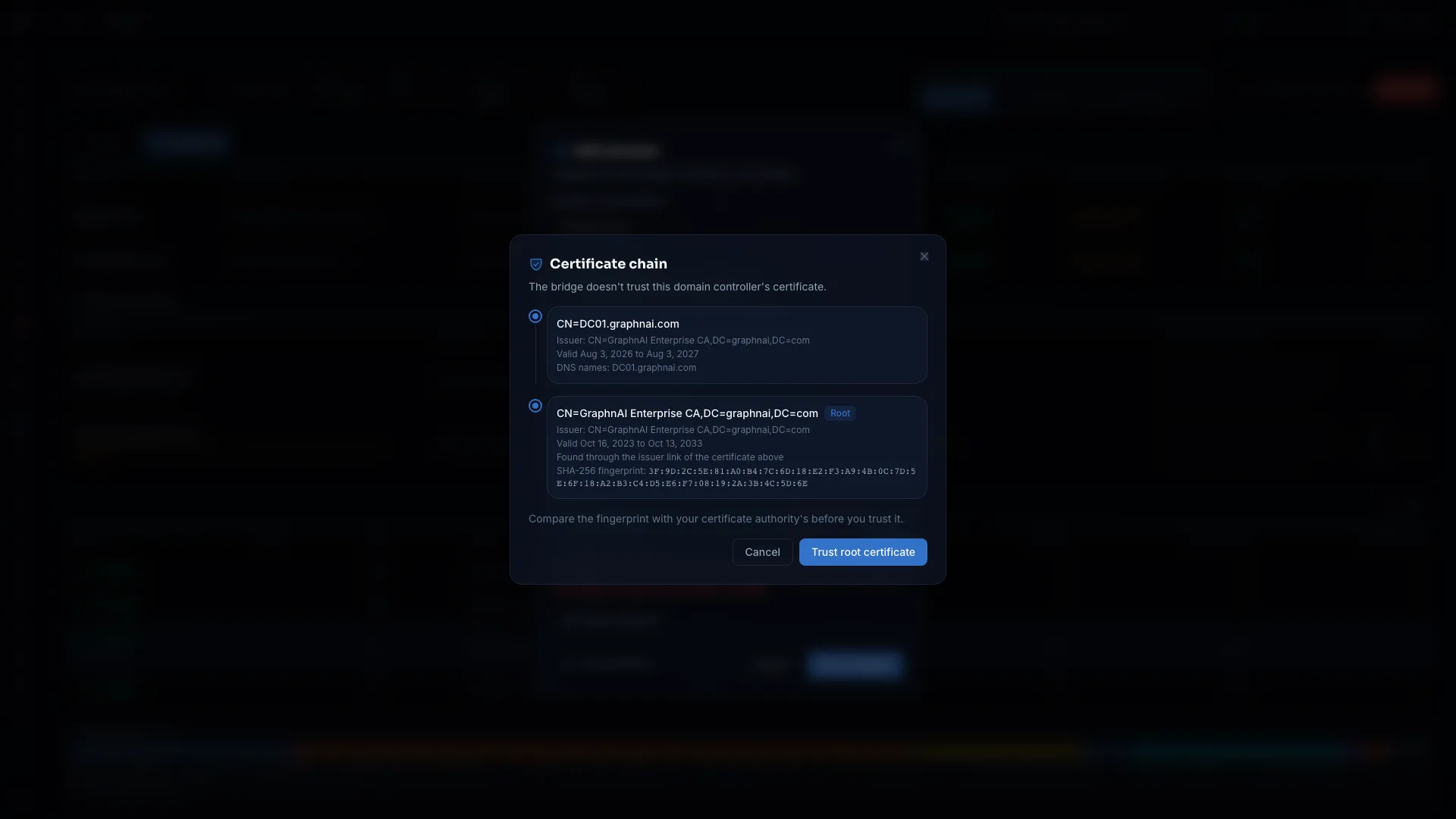

Review and Trust the Chain

1. In the Add domain or Edit domain form, select Test connection.
2. If the test reports an untrusted certificate, select Review certificate.
3. In Certificate chain, check each certificate's subject, issuer, validity dates and DNS names. The controller's certificate comes first and the root last. An expired certificate is marked Expired.
4. Compare the root's SHA-256 fingerprint with your certificate authority's. On the certificate authority, certutil -ca.cert ca.cer exports its certificate and certutil -hashfile ca.cer SHA256 prints the fingerprint.
5. Select Trust root certificate.
6. Select Test connection again.

The bridge reads the chain from the controller that failed the certificate check. When no sync has reported one yet, it reads the first controller in the list.

Domain controllers usually send only their own certificate, so the bridge looks up each issuer:

• If a certificate names a web address for its issuer, the bridge downloads the issuer's certificate from there.
• AD CS publishes its certificates in Active Directory. The bridge reads them through a domain already saved on this bridge whose connection it trusts. A controller whose renewed certificate broke its trust completes through another controller in the same forest.

A certificate the bridge looked up reads "Found through the issuer link of the certificate above". The bridge adds a certificate to the chain only if it signed the certificate below it. Only a certificate that signs itself is marked Root.

If the chain passes through an issuing certificate authority the controller didn't send, Trust root certificate trusts that one too. Without it, the bridge can't verify the controller. Each trusted certificate appears in Trusted Certificates.

GraphnAI keeps the trusted certificates with the bridge's settings and sends them every time it sends the settings. A restarted or redeployed bridge trusts them again without another step.

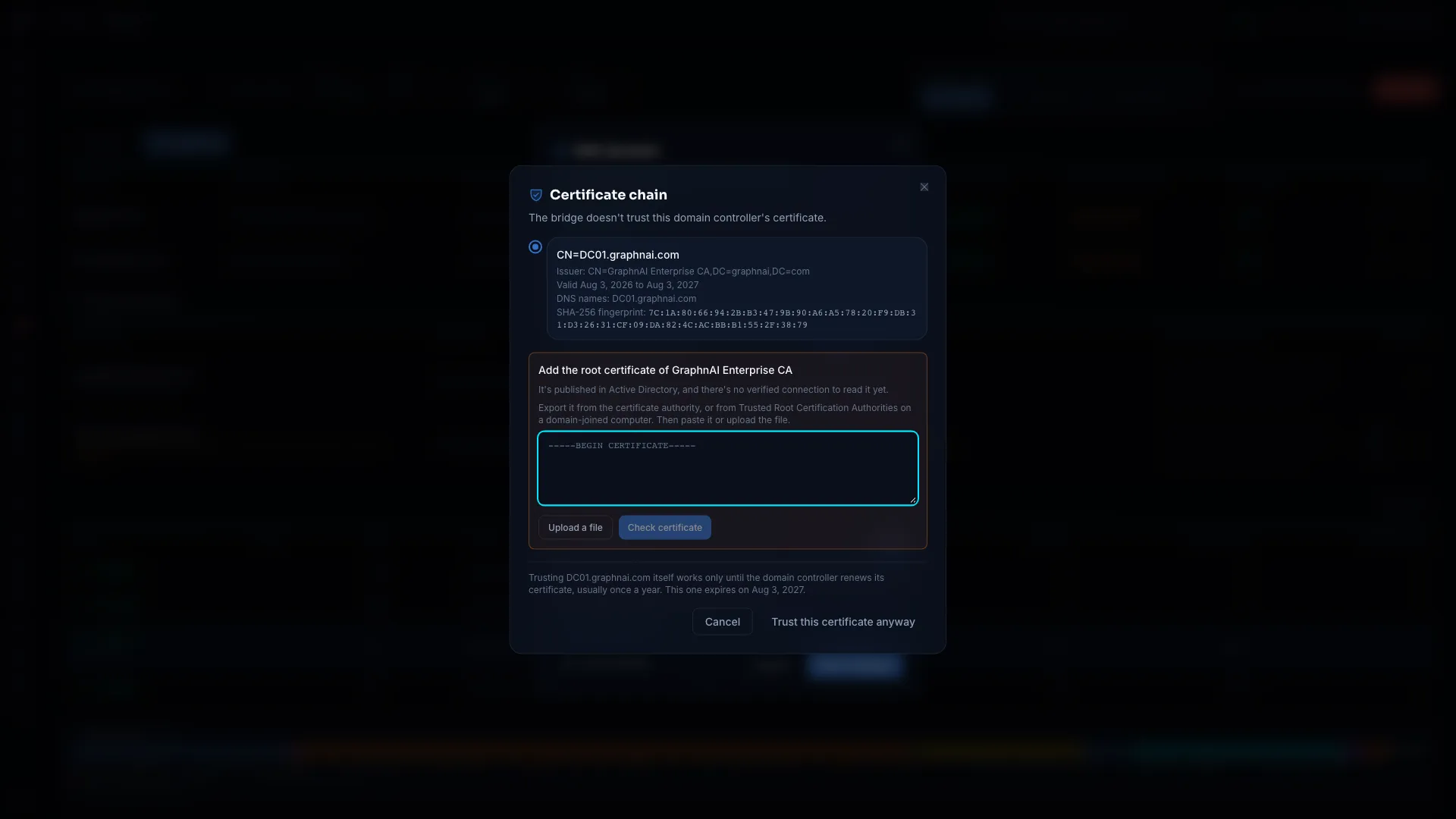

Add the Root Certificate Yourself

On a new forest, no saved domain has a trusted connection yet, so the bridge can't read the issuer from Active Directory. The chain then stops at the controller's certificate. The dialog asks for the root certificate of the issuer it names, and says why the chain stopped.

1. Export the root certificate from the certificate authority, or from Trusted Root Certification Authorities on any domain-joined computer (certlm.msc, then All Tasks > Export). DER and Base-64 files both work.
2. Paste the certificate and select Check certificate, or select Upload a file, which checks the file at once. GraphnAI checks that the certificate issued the controller's certificate and that it's a root. A file that also holds an issuing certificate authority works too.
3. When the chain completes, compare the fingerprint, then select Trust root certificate.

Trust this certificate anyway trusts the controller's own certificate instead. It works only until the controller renews its certificate, so use it for testing, or until you have the root.

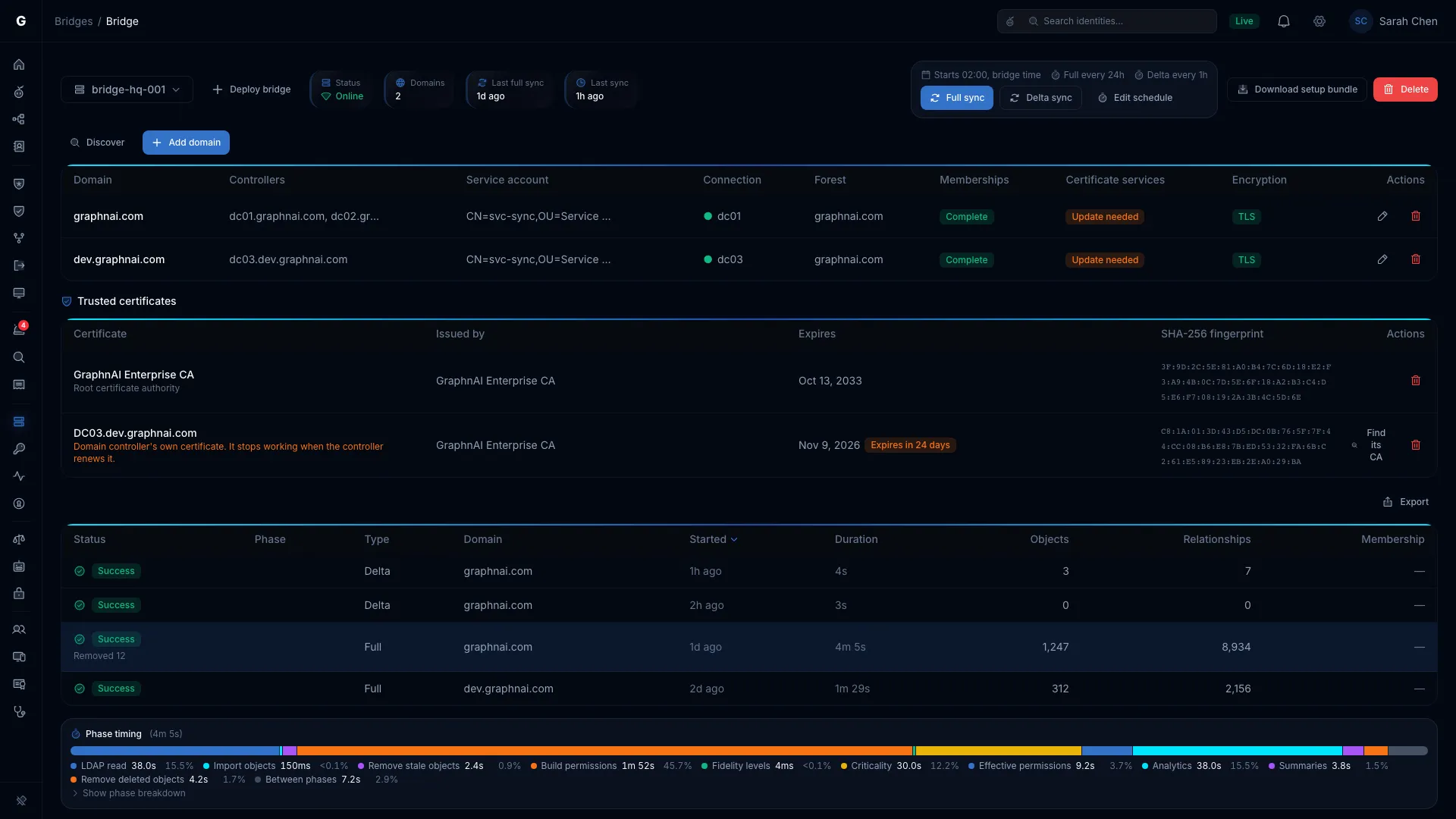

Trusted Certificates

The Trusted certificates list on the bridge's page shows every certificate GraphnAI tells the bridge to trust for LDAPS.

Admins can act on each row:

• Find its CA (on a domain controller's own certificate): Reads that controller's chain, which still verifies through the certificate you trusted. Trust the certificate authority it finds, then remove the controller's certificate.
• The trash icon (Remove from the trusted list): After you confirm, the bridge stops trusting the certificate at once. An offline bridge stops when it reconnects.

The message after a change says what the bridge did:

• A bridge from an earlier version applies the change only after you update the bridge.
• If a file on the bridge host also trusts a removed certificate, remove it from that file too.
• When the bridge doesn't answer or doesn't apply a change, the change is still saved, and GraphnAI sends the bridge its settings again at once.
• If the bridge applies a change but can't save it to its trust file, check that the bridge can write that file.

An expired certificate stays in the list, marked Expired, until you remove it. The bridge no longer uses it.

The list is GraphnAI's record, and the bridge's trust follows it. Each time the bridge receives its settings, it trusts exactly the certificates in the list. Certificates placed in a file on the bridge host aren't in the list and can't be removed here. When the bridge has any, the list says how many. See Trusting Custom Enterprise CAs.

Common Certificate Setups

• Internal AD CS (most common): Review the certificate from any controller, then trust the root certificate authority. One trusted root covers every controller it issued a certificate to.
• Public certificate authority: The bridge already trusts well-known public roots, so LDAPS works without another step.
• Self-signed certificate: The chain holds one certificate, marked Self-signed. Trust this certificate trusts it until the controller replaces it.

Settings Delivery

When you save, GraphnAI sends the new settings to a connected bridge at once. If the bridge is offline, GraphnAI keeps the settings and sends them when the bridge reconnects. The bridge gets its latest settings on every reconnect, so a missed delivery needs nothing from you.

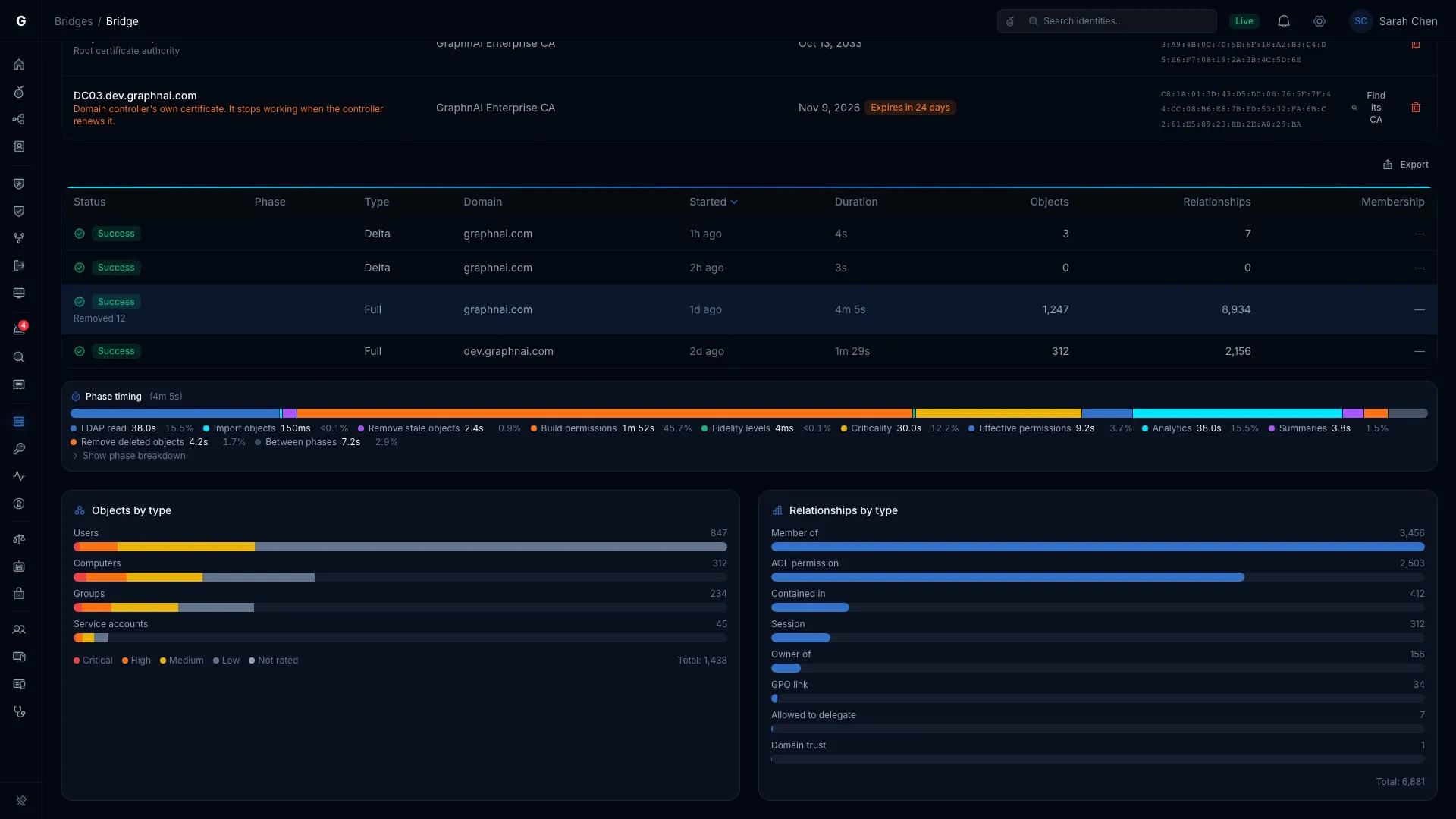

Sync History

Sync history lists the bridge's recent syncs, newest first. You can sort by Status, Started, Duration, Objects and Relationships.

What the statuses mean:

• Partial: The sync finished, but part of it didn't. For example, permissions weren't built, a processing step failed, or some group memberships weren't collected. The message under the badge says which.
• Stopped: Someone selected Stop.
• Interrupted: The server stopped while the sync ran.

A row can also carry these:

• Removed N: Objects deleted in the directory and removed from the graph. Hover for the count by type.
• Deleted objects kept: Objects deleted in the directory weren't removed this sync. The next full sync tries again.
• N warnings: Hover to read them.

Select a row to show that sync's details below the table. The latest sync is selected when the page opens.

• Phase timing: The time each step took. Select Show phase breakdown for the full timeline. See Sync Phase Timeline.
• Group membership details: Shown when the sync has something to report about group memberships.
• Objects by type: Counts by object type, split by criticality.
• Relationships by type: Counts by edge type.

A sync that didn't record its own counts shows today's counts, marked "Current counts. This sync didn't record its own." Before the first full sync finishes, the panel shows "No object counts yet."

Troubleshooting

The Bridge Shows Offline

Possible causes:

• The bridge isn't running on its host.
• A firewall blocks the bridge's outbound connection to GraphnAI on port 8443.
• The setup bundle names the wrong server address.

Steps:

1. On the bridge host, check that the bridge is running (ps aux | grep graphnai-bridge, or the service status).
2. Read the bridge's log for connection errors. See Identity Bridge troubleshooting.
3. Check that the bridge host reaches GraphnAI on port 8443: nc -zv your-server 8443.
4. Check that the host's firewall and any network devices on the path allow outbound traffic to port 8443.

Test Connection Says "The bridge isn't connected"

The test runs through the live bridge, so the bridge must be connected.

1. Check that Status reads Online.
2. If it reads Offline, start the bridge and wait a few seconds for it to reconnect.
3. Select Test connection again.

Test Connection Says the Service Account Was Rejected

Possible causes:

• The account name or password is wrong.
• The account is locked, expired or disabled.
• The account name isn't in a form the domain accepts.

Steps:

1. Make an LDAP bind with the account in a tool such as ldp.exe or ldapsearch to confirm it works.
2. Check the account's status in Active Directory.
3. Use the user principal name (UPN) form, such as [email protected]. CORP\svc-graphnai and a distinguished name also work for the directory.

Test Connection Says the Bridge Couldn't Reach the Controller

Possible causes:

• The controller name or port is wrong.
• A firewall between the bridge host and the controller blocks the LDAP or LDAPS port.
• The controller is offline.

Steps:

1. From the bridge host, check the controller: Test-NetConnection dc01.corp.example.com -Port 636 (PowerShell) or nc -zv dc01.corp.example.com 636 (Linux).
2. Check that the port matches the TLS setting: 636 with Use TLS (LDAPS) on, 389 with it off.
3. If the controller uses another port, include it in the entry, such as dc01.corp.example.com:10636.
4. Review the firewall rules between the bridge host and the controller's subnet.

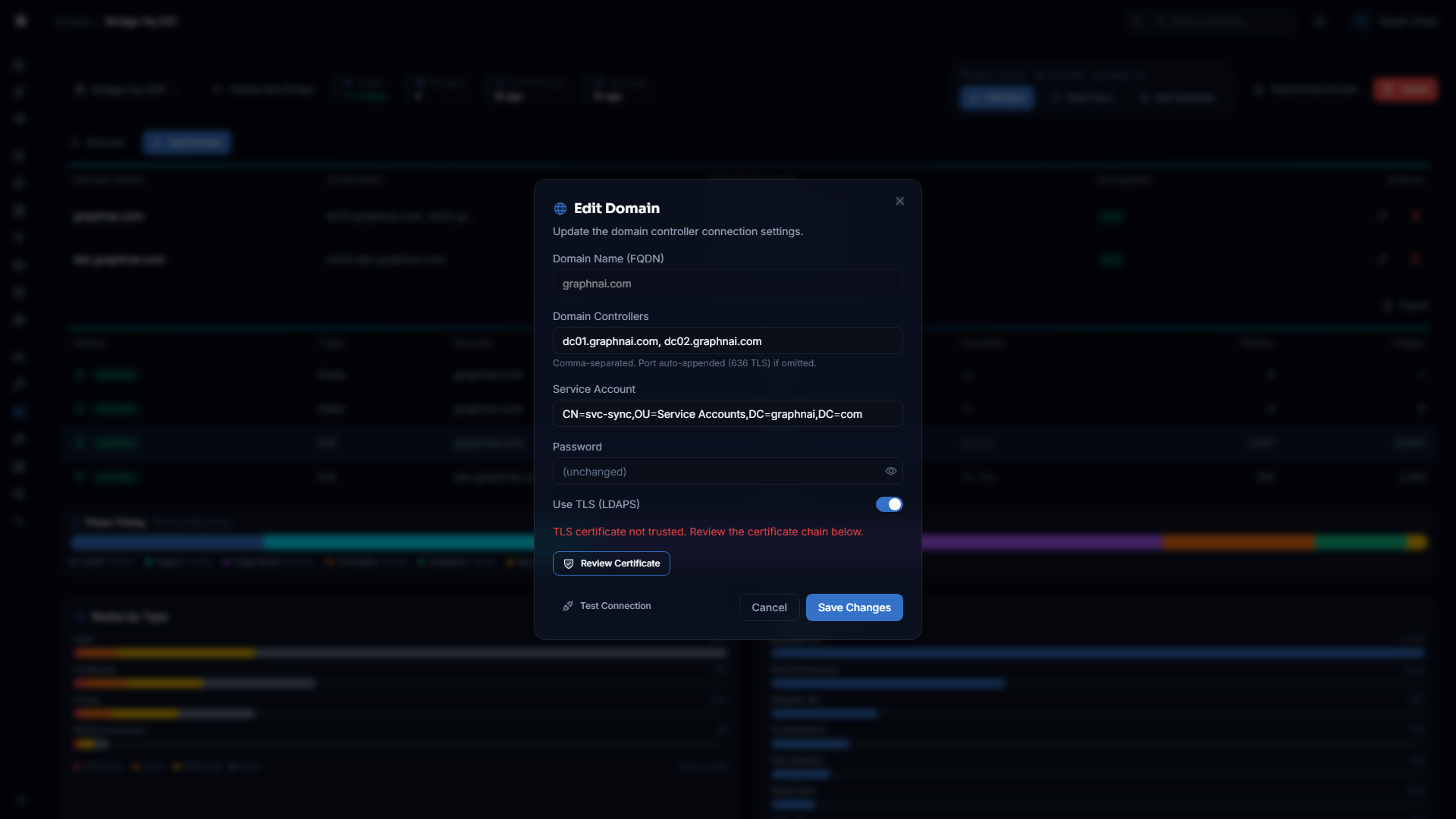

Test Connection Reports an Untrusted Certificate

Possible causes:

• The domain uses an internal certificate authority the bridge doesn't trust yet.
• The bridge trusted the controller's own certificate, and the controller renewed it.

Steps:

1. Select Review certificate in the domain form.
2. Compare the root's fingerprint, then select Trust root certificate. If the chain stops at the controller's certificate, add the root yourself.
3. Select Test connection again.
4. If Trusted certificates still lists the controller's old certificate, remove it.

See Trust the Certificate Authority for LDAPS.

The Connection Column Shows "LDAP bind rejected" After It Worked Before

Possible causes:

• The service account's password changed, or the account was locked.
• The account was disabled or deleted.

Steps:

1. Hover over the cell to read what each controller reported.
2. Check the account in Active Directory Users and Computers, or with PowerShell: Get-ADUser svc_graphnai -Properties LockedOut, Enabled.
3. If the password changed, edit the domain, enter the new password, test the connection and save.

If a controller renewed a certificate the bridge trusted directly, the test reports a certificate problem instead. See Test Connection Reports an Untrusted Certificate.

The Bridge Still Uses Old Settings After a Save

Cause: The bridge was probably offline when you saved.

Steps:

1. Check that Status reads Online. A reconnecting bridge gets its latest settings on its own.
2. To send the settings again now, save them again while the bridge is online.
3. If it persists, search the server log for "Marked bridge for config re-push on reconnect" to confirm the delivery was queued.

Related Documentation

• Attribute Sync Configuration: Choose which Active Directory attributes the bridge collects.
• Stale Identity Detection: Use synced data to find dormant accounts.
